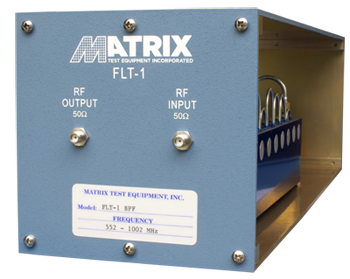

FLT-1-SN
Shaped Noise Filters
Our Shaped Noise Filter is a high level blocked shaped filter
for simulating digital channel loading.
It is a low cost option for CATV Digital testing. Paired with our
QAM Source, MNS-1 Noise Source and FLT-1-NOTCH Filter,
MER, BER & CNR measurements can
be obtained.
CONTACT SALES FOR MORE INFORMATION AND OPTIONS.

SPECIFICATIONS
PLOTS
Operating Frequencies | 552 ~ 1003 MHz |
Flatness | +/- 1 dB |
Rejection | 0 ~ 549 MHz: > 65 dB 1050 ~ 2500 MHz: > 70 dB |
Impedance | 50Ω SMA |
Insertion Loss | < 3 dB |
Return Loss | > 7 dB |

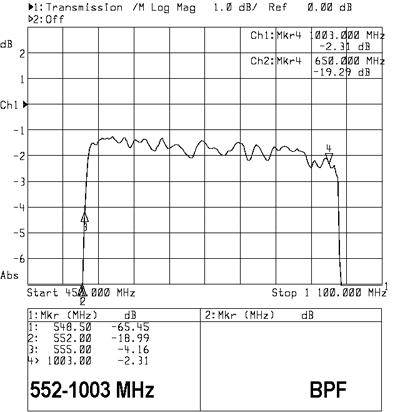

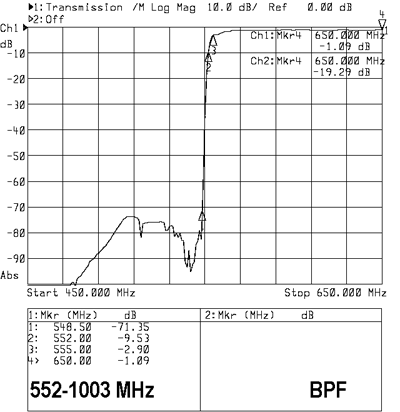

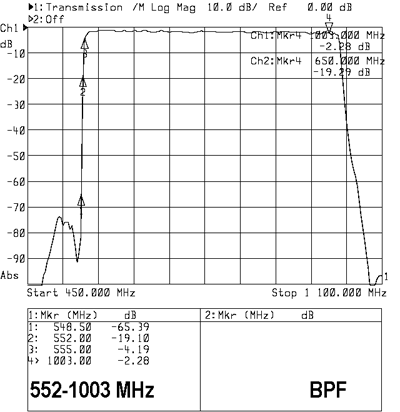

PLOTS
![]() | ![]() |
![]() | ![]() |
