FLT-1-NOTCH

NOTCH FILTERS

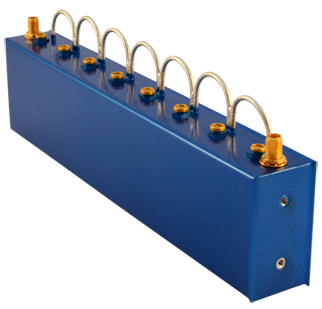

The Model FLT-1 NOTCH filter allows a single channel either
Analog or QAM, to pass through for testing a specific frequency.

These can be ordered for any frequency from 500 to 1000 MHz
based on required specifications.



CONTACT SALES FOR MORE INFORMATION AND OPTIONS.



SPECIFICATIONS
Frequencies Any Frequency from 500 MHz to 1000 MHz
Impedance 50Ω
Rejection At least 60 dB down (Typical > 65 dB)
Bandwidth 6 MHz
Insertion Loss (Single Filter) < 1 dB
Impedance/Connector Options 50Ω: SMA

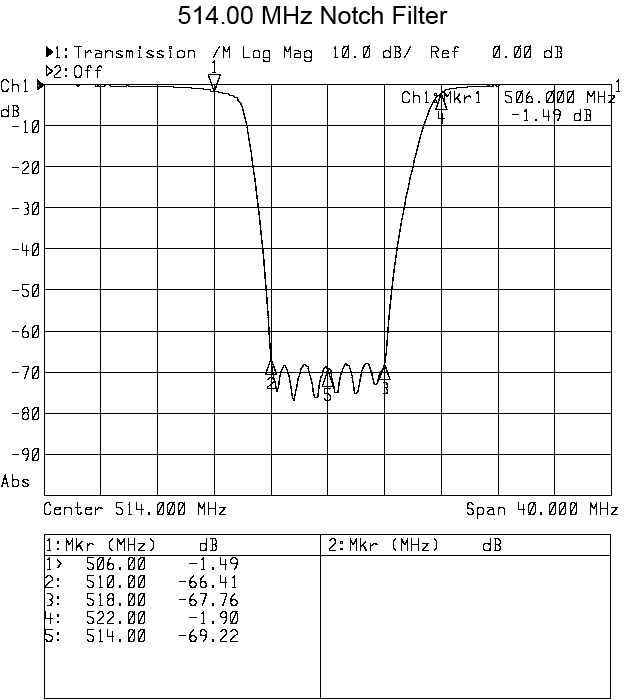

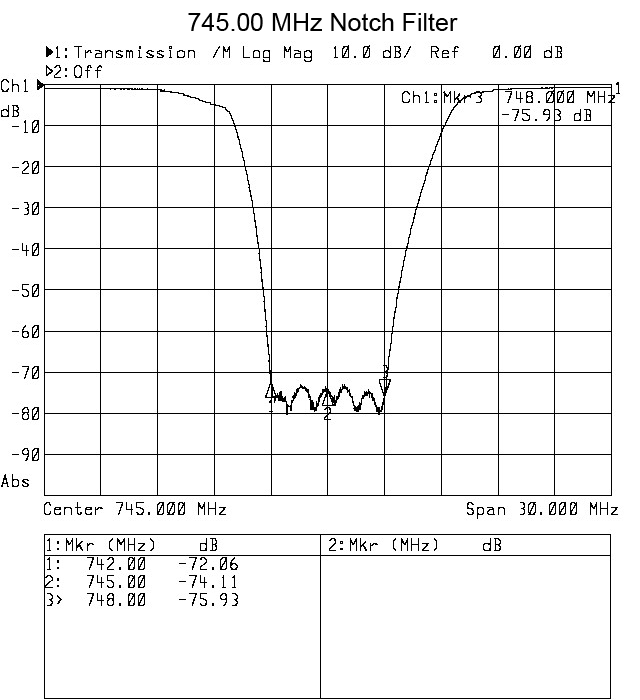

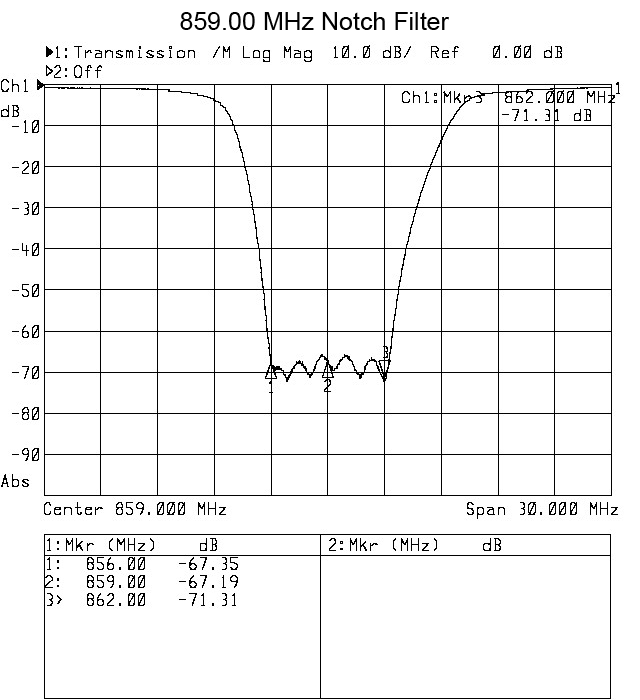

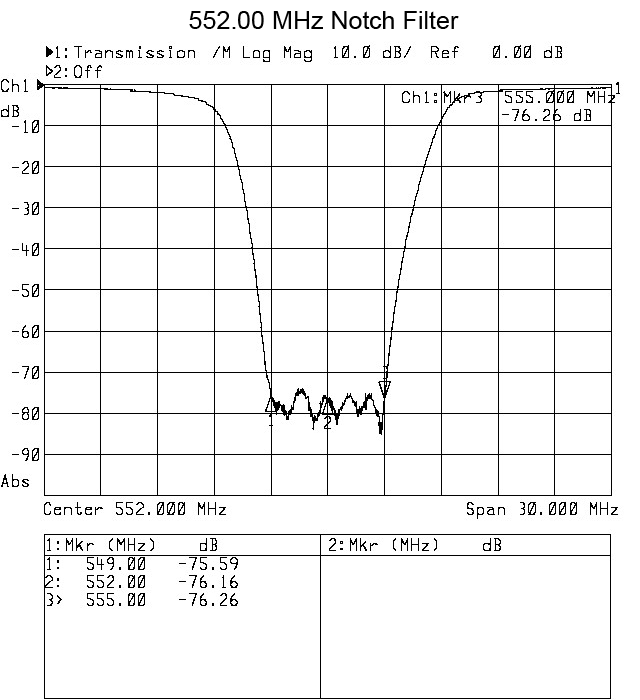

PLOTS
