PSX-6C

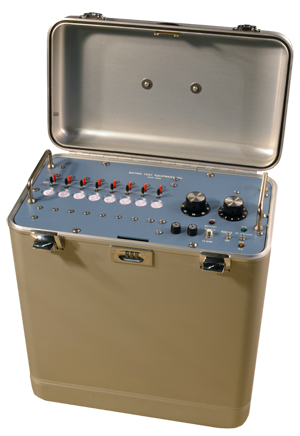

Portable Multiple Frequency Signal Generator

The Model PSX-6C is a portable, weatherproof unit that
generates clean, un-modulated, crystal-controlled,
amplitude-variable outputs, up to +60 dBmV per channel.
The PSX-6C uses enhanced technology and provides
carriers that can be adjusted over a linear range of 15 dB.

CONTACT SALES FOR MORE INFORMATION AND OPTIONS.

SPECIFICATIONS
Frequencies Any frequency from 5 to over 1000 MHz.
Maximum Number of Channels 8 Frequencies.
Power Output:(Guaranteed Minimum Ratings) +60 dBmV per channel.
Manual Controls

Carrier (each channel): On - Off - Adjustable 15 dB Amplitude.
Output Level Adjustment: Step Attenuators simultaneously reduce all channels up to 80dB in 1 dB steps.

Spurious Content All harmonics, second and third order distortion products guaranteed better than 100 dB down.
Frequency Stability Carriers: 0.001%, Modulation: 0.003%.
Output Impedance to connector type 50 Ohm BNC, N or SMA.
75 Ohm (optional) F, BNC, or N.
Primary Power 110-120 Volts, 50-60 Hz. Other voltages and frequencies are available.
12V with Included Battery.
Battery Operation 5 Hours
Options Modulation (each channel) - CW or 100%.
