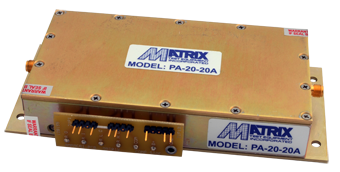

PA-2020
Post Amplifier
The model PA-2020 improves the performance CNR. When installed in the AFS-12WB unit, the power for each channel can be controlled individually. Can be used in other applications or custom configurations.
CONTACT SALES FOR MORE INFORMATION AND OPTIONS.
SPECIFICATIONS
PLOTS
| Frequencies | Any frequency from 5 to over 1000 MHz |
| Power Output: | +10 dBM Maximum |
| Gain: | 20 dB / 37 dB |
| Primary Power | +15V DC |
| Relay Power | +24V DC |

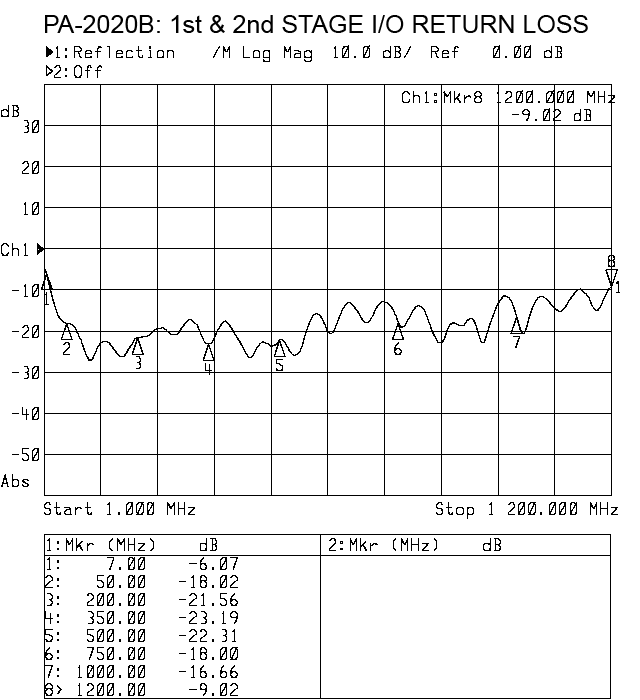

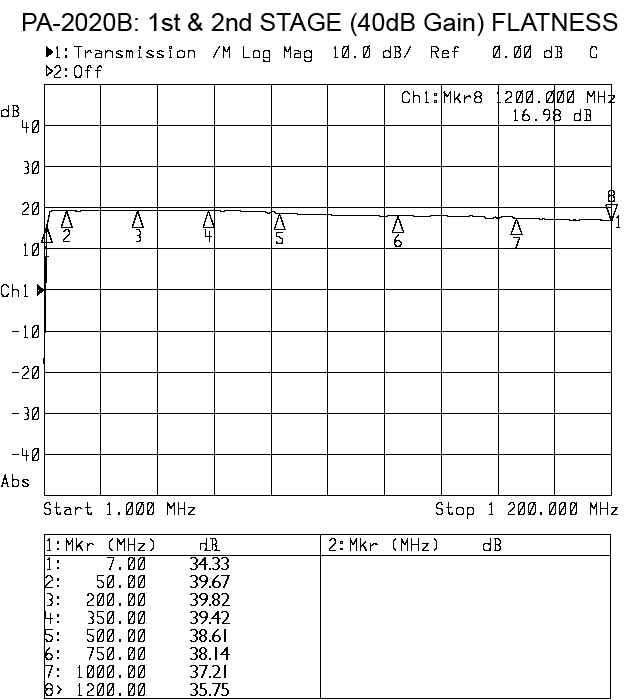

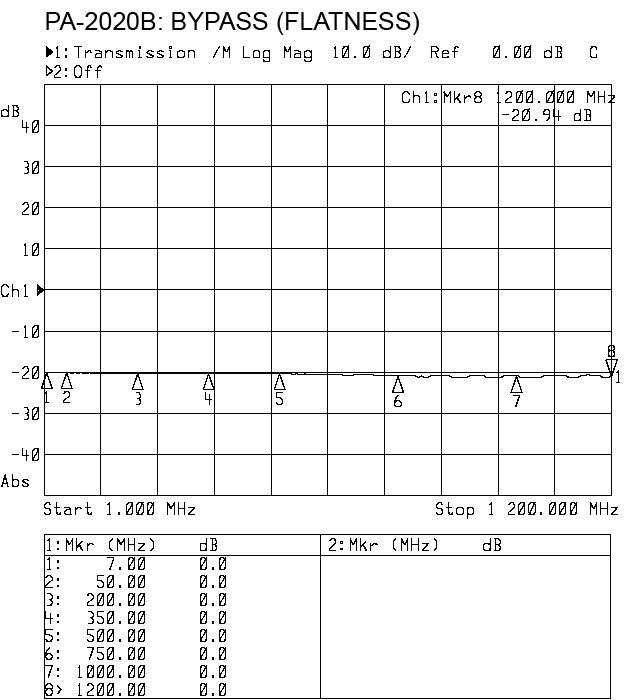

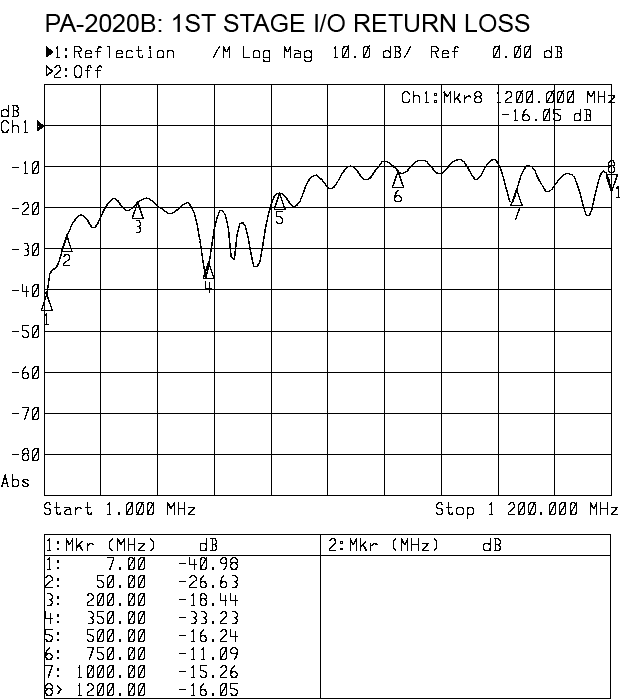

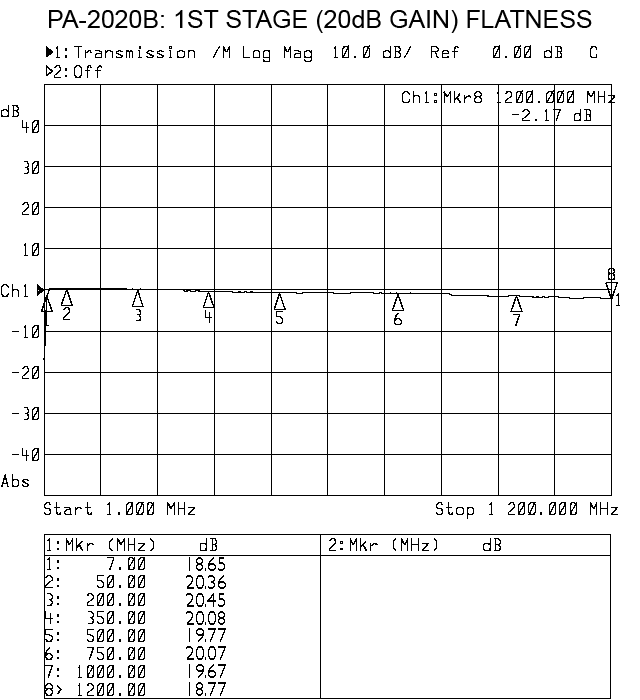

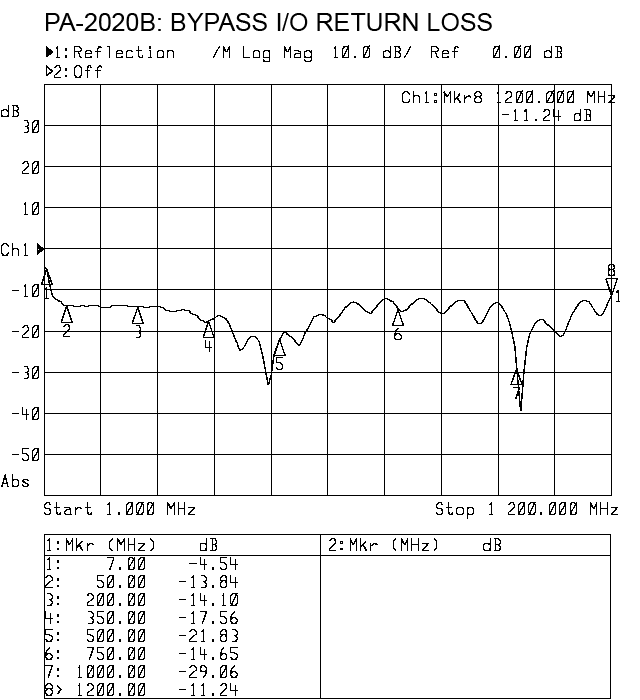

PLOTS
 |
 |
 |
 |
 |
 |
