FLT-1-WB
WIDE BANDPASS FILTERS

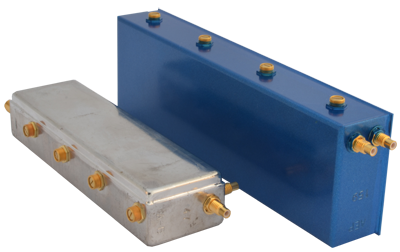

The Model FLT-1-WB is our Wide Bandpass filters
for
measuring
the Video Carrier and the Composite Second Order Beat
distortion on both sides of the carrier.
The FLT-1-WB filters are used in our AFS-12WB unit which
allows for automated switching of each filter for rapid testing sequences.
The standard impedance is 50Ω with SMA connectors.
BNC and F connectors are available upon request.
CONTACT SALES FOR MORE INFORMATION AND OPTIONS.
SPECIFICATIONS
| Frequencies | Any Frequency from 7 MHz to 1200 MHz |
| Impedance | 50Ω (75Ω Optional) |
| Rejection | At least 25 dB down @ +/- 6 MHz |
| Bandwidth | +/- 1.25 Mhz @ +/- 0.2 dB ripple |
| Insertion Loss (Single Filter) | 3.0 to 8.0 dB (Depending on Frequency) |
| Impedance/Connector Options | Standard: 50Ω: SMA Optional: 50Ω: SMC, BNC / 75Ω: BNC, F |
