CRS-8, CRS-4, CRS-2
Coaxial Switches

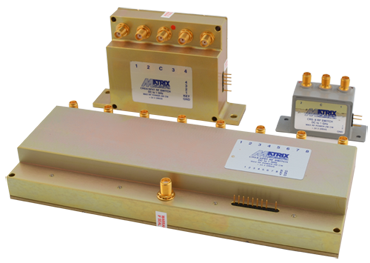

Matrix CRS Coaxial switches are both reliable and cost effective. These switches are installed in our AFS-12WB Filter Selector and withstand many years, often decades of constant use.
Three versions are available: SP8T, SP4T, SP2T
SPECIFICATIONS
PLOTS
| Operating Frequencies | 5 MHz to over 1200 MHz |
| Transform Impedance | 50Ω |
| Maximum RF Power | + 30dBm CW | Insertion Loss | CRS-8: <1.0 dB CRS-4: <0.7 dB CRS-2: <0.3 dB |
| Return Loss | CRS-8: >20 dB CRS-4: >20 dB CRS-2: >20 dB |
| Isolation | > 50 dB |
| Distortion | CTB/CSO/XMOD (Better than -110dBc Down) |
| Contacts | CRS-8: SP8T CRS-4: SP4T CRS-2: SP2T |
| Switching Voltage | 24 VDC Nom. (18 ~ 26 VDC) Continuous | Connector Type | SMA (Female) |
| Switching Current | CRS-8: 27 ma CRS-4: 18 ma CRS-2: 9 ma |
| Life Expectancy | 2 Million Cycles |

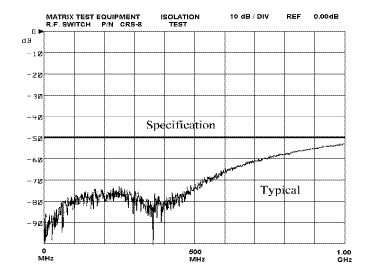

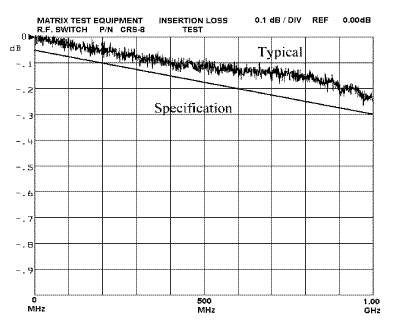

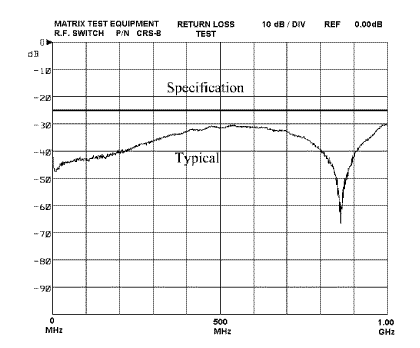

PLOTS
 |  |
 | |
